The cabinet board gets specified in the contract. The door finish gets chosen in the showroom. The hardware gets picked in the last five minutes when everyone is tired and the contractor is waiting. That sequence is backwards. Hardware is what you touch every single day - every drawer you open, every door you close, every hinge that holds together under ten years of daily Malaysian cooking. Getting it right matters more than most homeowners realise until it starts going wrong.
This guide covers the four main hardware categories in a Malaysian kitchen cabinet - hinges, drawer runners, lift systems, and handles - with specific recommendations for what to specify, which brands hold up, and what the red flags look like in a contractor's quote. For a broader look at what to confirm before signing, see our guide to choosing the right kitchen cabinet maker.
- Blum and Hafele are the two most trusted hardware brands in Malaysia - both offer 10-year warranties and have local authorised distributors. Generic no-brand hardware is the most common reason for premature cabinet failure.
- Soft-close hinges are worth the premium in Malaysian kitchens where doors are opened and closed dozens of times daily - the reduced wear on hinges, doors, and carcass extends the cabinet lifespan significantly.
- Full-extension drawer runners are not a luxury - they make the full depth of every drawer accessible and are the single most impactful drawer upgrade available.
- A contractor's quote that says "good quality hinge" or "branded runner" with no brand name specified is not a verifiable specification. Always ask for brand and model in writing.
- Most hinge alignment issues - doors that no longer hang level or close flush - can be fixed by adjustment rather than replacement. Blum and Hafele hinges have three-way adjustment screws for exactly this purpose.
- Push-to-open (handleless) systems require more precise installation than handle-based systems. Poor installation leads to inconsistent opening resistance and is one of the most common complaints in handleless kitchen renovations.
Why Kitchen Cabinet Hardware Matters More Than Most Homeowners Think
Cabinet hardware is the mechanical interface between you and your kitchen - every interaction you have with a cabinet involves a hinge, a runner, or a handle. In a Malaysian household that cooks three meals a day, a single cabinet door may be opened and closed over 3,000 times a year. Over ten years, that is 30,000 cycles on each hinge. Hardware that is rated and built for that load performs reliably. Hardware that is not fails - typically starting in year three to five, when the warranty has expired and the contractor is no longer available.
The cost difference between good hardware and poor hardware on a full kitchen cabinet installation is typically RM800 to RM2,000 - roughly 5 to 10% of the total project budget. The cost of replacing failed hardware after installation - including labour to remove and refit cabinet doors and drawers - is almost always higher than the original upgrade would have been. This is the hardware trade-off that most homeowners only understand in retrospect.

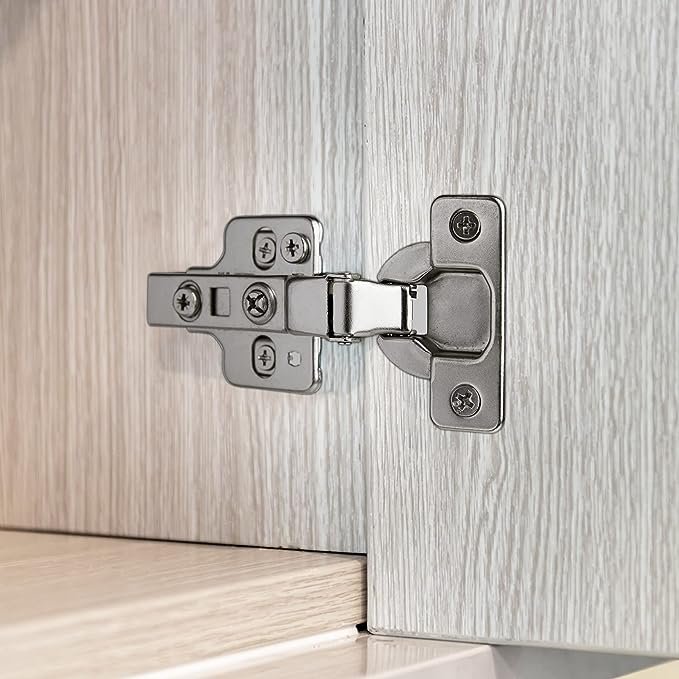

Cabinet Hinges - Types, Specifications, and What to Ask For
- Recommended brandsBlum CLIP top BLUMOTION, Hafele Metalla 510
- Opening angle110 degrees standard / 165 to 170 degrees for corner positions
- Hinges per door2 up to 800mm / 3 from 800 to 1,200mm / 4+ above 1,200mm
- Load ratingBlum CLIP top rated to 40kg door weight per pair
- Recommended productBlum CLIP top BLUMOTION with integrated soft-close
- Cost premiumRM5 to RM10 per hinge over standard equivalent
- WarrantyBlum 10-year warranty on hinge mechanism
- Damper lifespanRated to 200,000 opening cycles
Drawer Runners - The Most Impactful Base Cabinet Upgrade

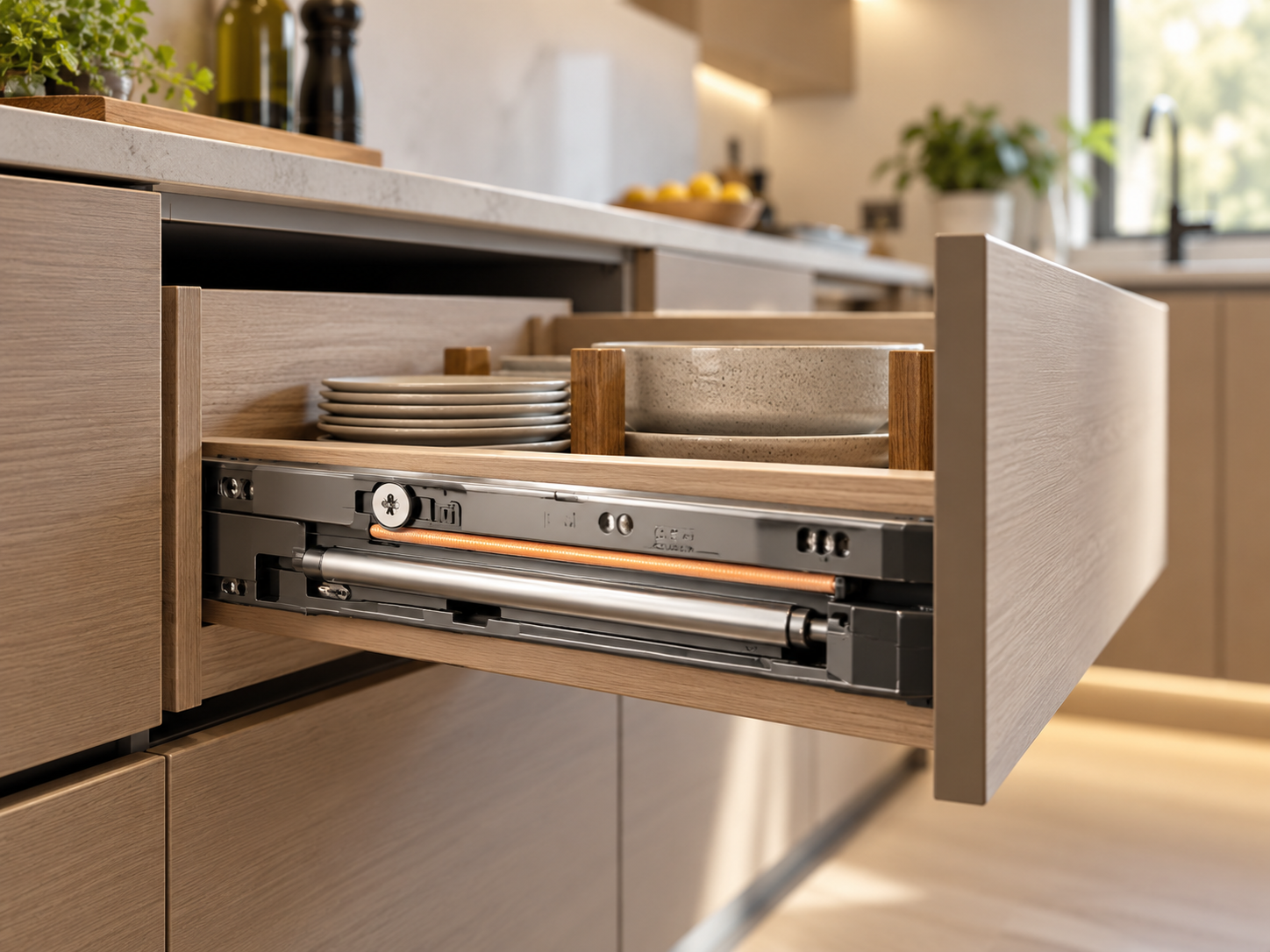

Drawer runners come in two functional types: partial-extension and full-extension. Partial-extension runners allow the drawer to open to approximately 75% of its depth - the back quarter remains inside the cabinet and is only accessible by reaching in. Full-extension runners allow the drawer to travel completely beyond the cabinet face, bringing every item into the open and visible.
In a Malaysian kitchen where base cabinets store pots, ingredients, and cooking tools, the practical difference is significant. Blum's TANDEMBOX and MOVENTO systems are the benchmark for full-extension concealed runners in Malaysia - side-mounted, silent, and rated to loads of 30kg to 70kg. For a deeper look at how pull-out storage transforms base cabinet usability, see our compact kitchen storage guide.

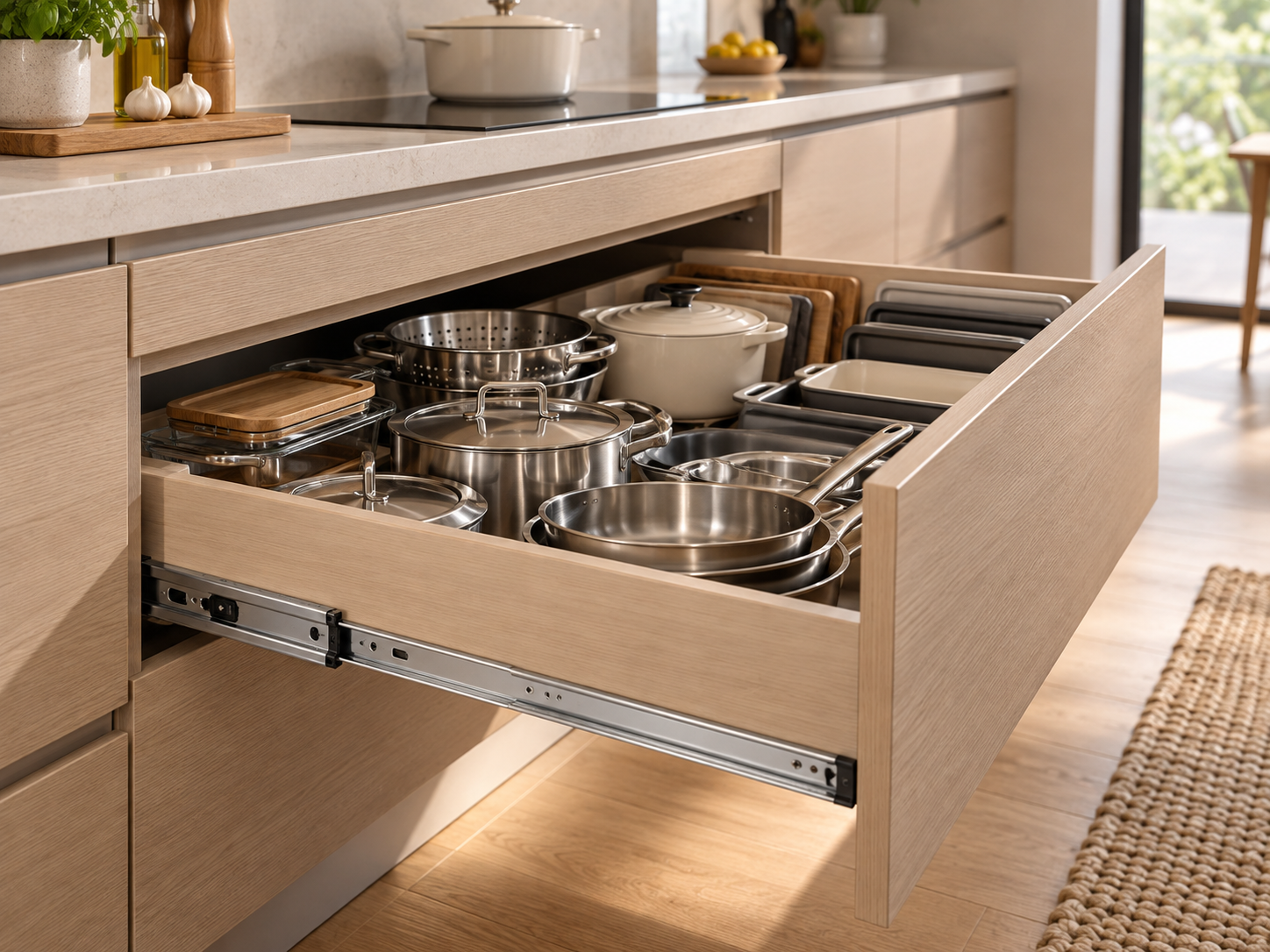

A soft-close runner decelerates the drawer in the final centimetres of closing, preventing it from slamming into the cabinet back. In Malaysian kitchens where heavy pots and full drawers are common, an unsoftened drawer closing with momentum puts significant stress on the runner mechanism, the drawer box, and the carcass board.
Blum's BLUMOTION soft-close mechanism integrates into their MOVENTO runner system. When the drawer is pushed to within approximately 30mm of fully closed, BLUMOTION engages and draws the drawer smoothly to its closed position - meaning a drawer pushed partially closed will self-complete. The TANDEMBOX system includes BLUMOTION as standard in most configurations.

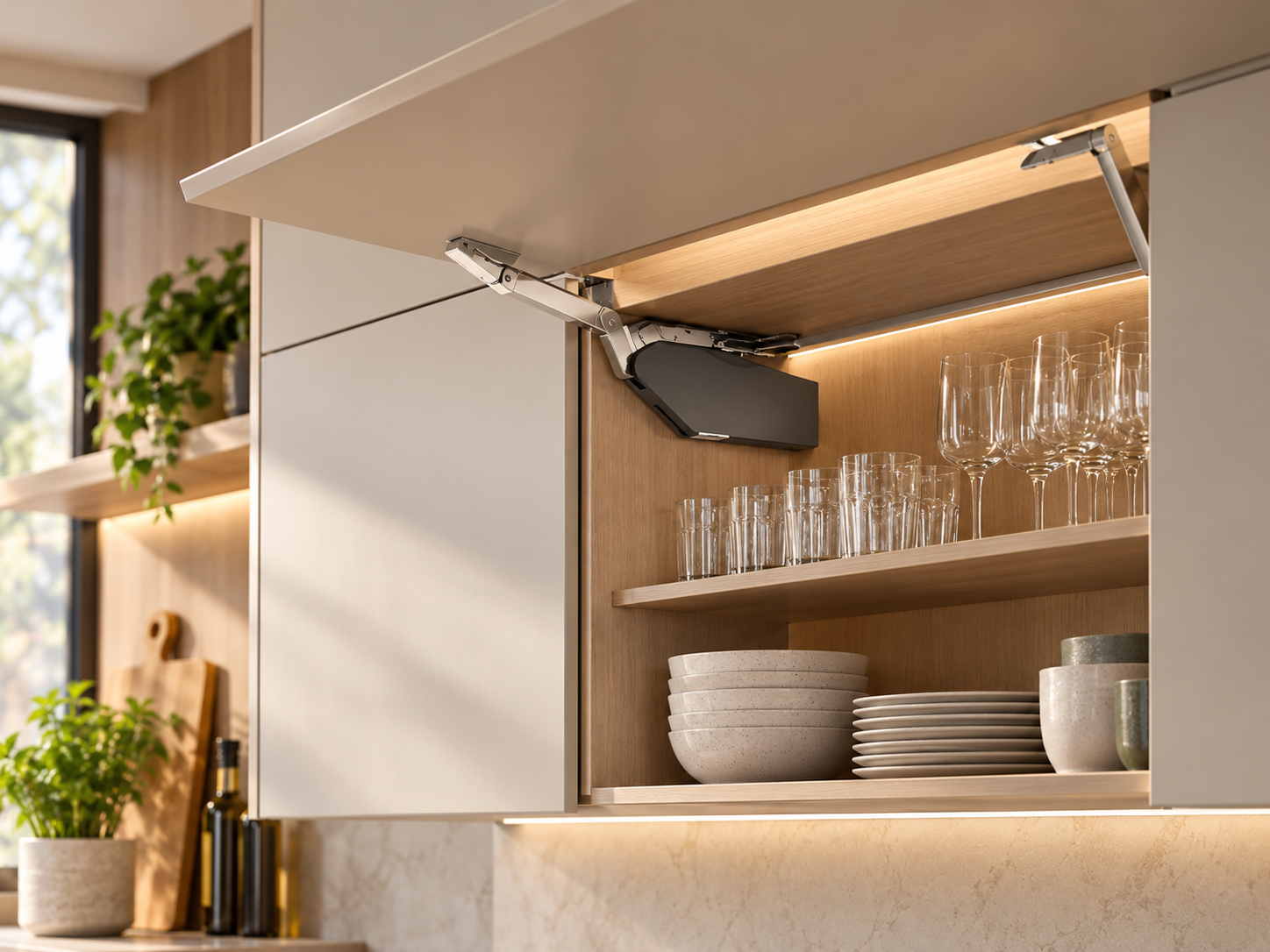

Lift Systems for Upper Cabinets - Flap and Bi-Fold Hardware
Standard upper cabinet doors swing outward on hinges. In a compact Malaysian kitchen where counter space is limited, an open upper cabinet door swinging into the workspace is a constant inconvenience - particularly above the hob. Lift systems replace the outward-swinging door with one that lifts upward, keeping the workspace below completely clear.
Blum's AVENTOS range covers five lift system types. The HK variant folds the door panel upward and inward - suitable for narrower wall cabinets. The HL variant lifts the full door panel straight up - for wider upper cabinets with heavier doors. The HF variant is a bi-fold system where the door folds in half as it lifts, reducing the clearance height required above the cabinet. Each variant includes force adjustment and built-in BLUMOTION soft-close. See our guide to cabinet features Malaysians regret not adding for more context on where lift systems have the most impact.

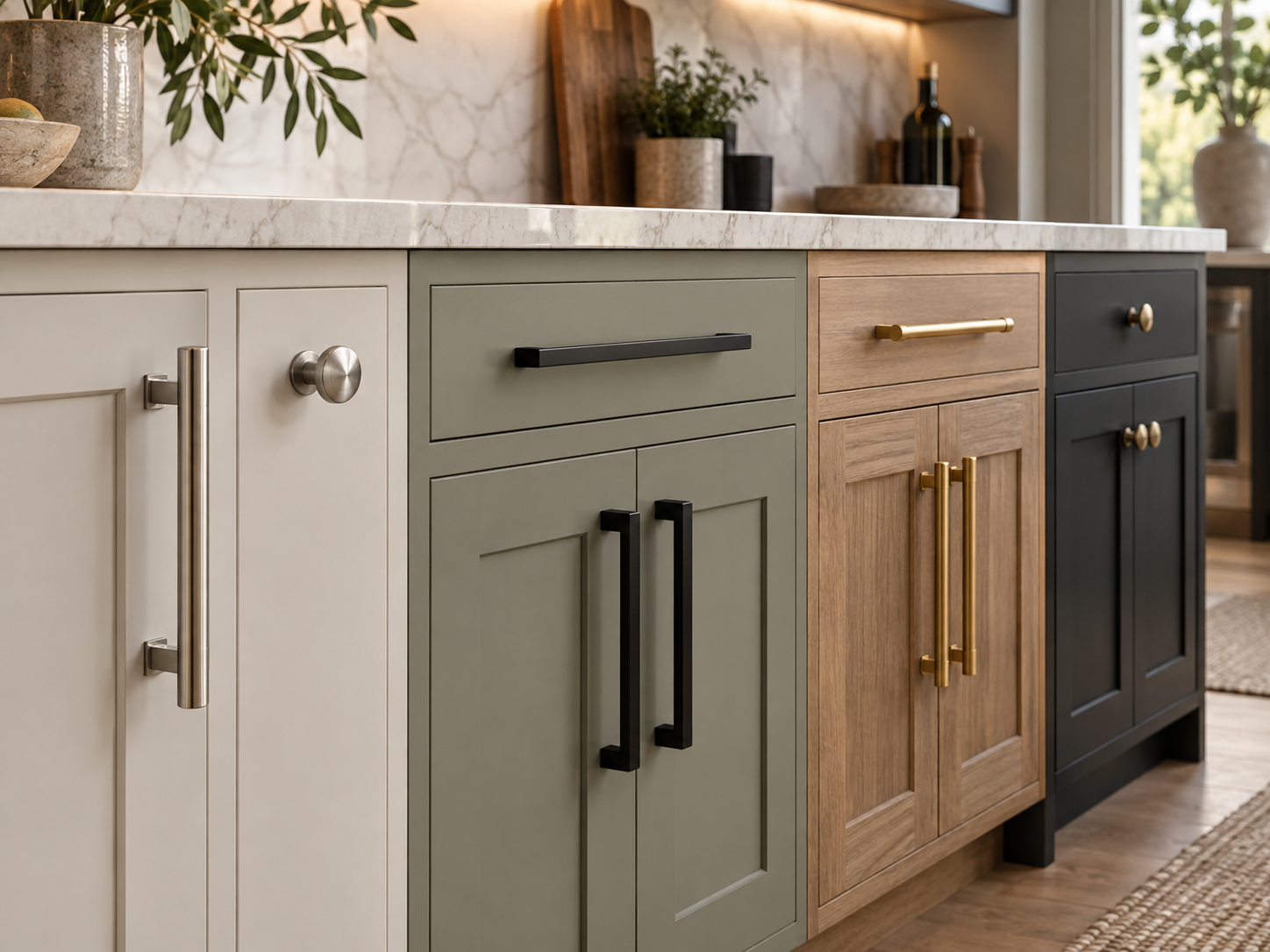

Handles and Knobs - Functional and Aesthetic Considerations
Handles are the most visually prominent hardware element and the most frequently touched surface in the kitchen. In Malaysian cooking conditions - where cooking oil, sauce residue, and moisture are constant - handle material and finish determine how much daily maintenance the handles require and how well they hold up over time.
Stainless steel handles are the most practical choice for Malaysian wet kitchens: fully resistant to moisture, oil, and cleaning agents, and do not corrode or discolour. Brushed finishes hide fingerprints better than polished. Matte black handles are popular in contemporary designs but require more frequent wiping in high-use wet kitchen environments. Brass-tone and gold-tone handles require PVD coating to resist tarnishing - uncoated brass-tone handles discolour within 12 to 18 months in high-humidity conditions.
Hardware Brand Guide for Malaysian Kitchen Cabinets
- Austrian brand, global benchmark for kitchen hardware
- 10-year warranty on all mechanical hardware
- BLUMOTION soft-close across hinges and runners
- TANDEMBOX and MOVENTO for drawer systems
- AVENTOS for upper cabinet lift systems
- Available from authorised Malaysian distributors
- German brand, widest hardware range in Malaysia
- Showroom in Malaysia at hafelehome.com.my
- Covers hinges, runners, handles, storage systems
- Metalla hinge range competes directly with Blum CLIP top
- Quadro runner system - competitive full-extension option
- Slightly broader price range - more mid-market options
- 50 to 70% cheaper than Blum or Hafele equivalent
- No warranty or very short warranty period
- Soft-close mechanism typically fails in 2 to 4 years
- Drawer runners often partial-extension only
- Acceptable for rental properties or short-term use
- Not recommended for own-property long-term installation
What to Confirm in Your Cabinet Quote Before Signing
Hardware is one of the most commonly downgraded items in renovation quotes without the homeowner being aware. A quote that passes the visual check - floor plan, cabinet dimensions, door finishes - may still contain generic hardware that will fail within five years. Here is what to look for.
- ✓Ask for Brand and Model - Not Just "Branded Hardware" A quote that says "high-quality soft-close hinge" or "branded runner" with no brand name is not a verifiable specification. Ask for brand and model number in writing. "Blum CLIP top BLUMOTION 110 degrees" is a specification. "Good quality hinge" is not. Reputable contractors can provide this without hesitation.
- ✓Confirm Full-Extension vs Partial-Extension for All Drawers Partial-extension runners are significantly cheaper and are commonly used as a default unless full-extension is specifically requested. Ask the contractor to confirm in writing whether each drawer uses full-extension or partial-extension runners. Base cabinets that store pots, dry goods, and frequently used items should all be full-extension.
- ✓Confirm Soft-Close on Both Hinges and Runners Some contractors include soft-close on hinges but use standard runners on drawers. Ask for both to be confirmed separately. A complete soft-close specification covers all hinges and all drawer runners in the kitchen.

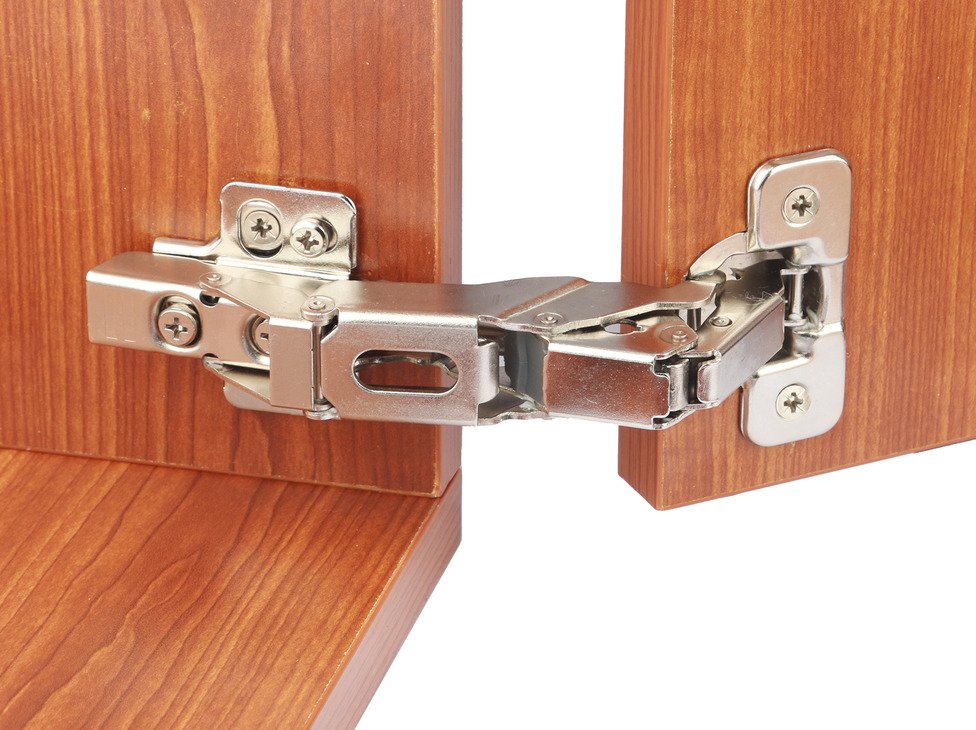

- ✓Confirm Corner Cabinet Hinge Specification Corner cabinet doors require wide-angle hinges at 165 to 170 degrees. Using standard 110-degree hinges in corner positions results in a door that cannot open fully and a hinge under constant stress. Ask the contractor to confirm the hinge angle for any corner cabinet positions in the design.
- ✓Check the Warranty Terms on Hardware Blum and Hafele offer 10-year warranties on their mechanical hardware - but the warranty applies to the product, not the installation. Ask your contractor what warranty they provide on workmanship and how hardware replacement is handled if a component fails within the warranty period.
If a contractor's quote describes hardware as "imported brand" or "European standard" without naming the brand, request clarification before signing. This phrasing is commonly used in Malaysia to imply premium hardware while leaving the actual brand unspecified - which allows substitution during installation.

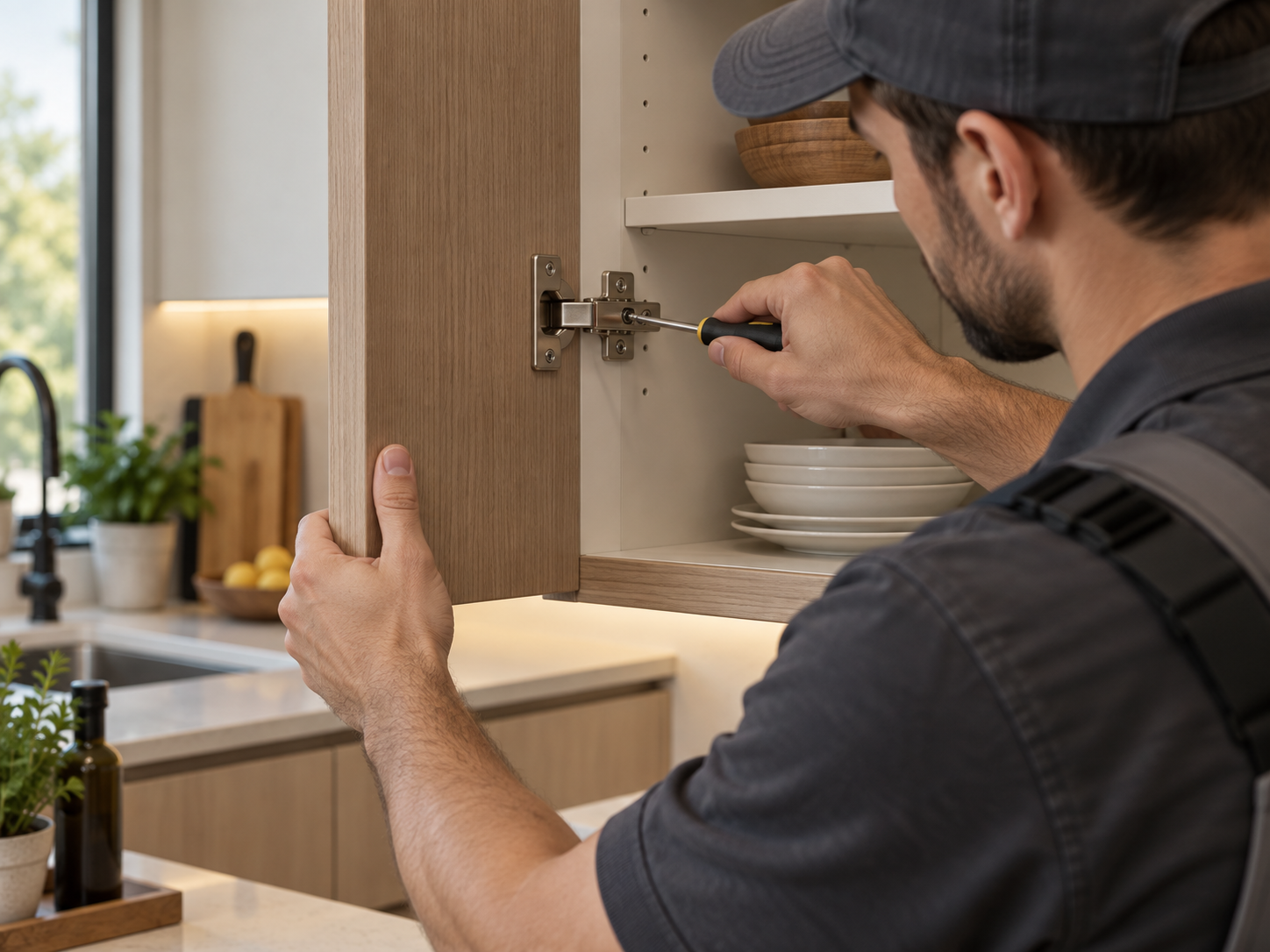

Common Hardware Problems and How to Fix Them
Almost always a hinge alignment issue, not structural. Blum and Hafele concealed hinges have three adjustment screws: height (up/down), depth (in/out from cabinet face), and lateral (side to side). Adjusting these in sequence corrects the vast majority of door alignment issues without replacing the hinge.
The hydraulic damper has failed. On Blum CLIP top BLUMOTION hinges, the BLUMOTION module is a separate component that can be replaced without removing the entire hinge. On integrated hinges, the full hinge requires replacement - a straightforward job for a carpenter.
Indicates worn or misaligned side-mounted runners. On Blum TANDEMBOX and MOVENTO systems, the runner has adjustment points accessible once the drawer box is removed. Significant lateral play that cannot be adjusted out means the runner requires replacement.
The runner is either misaligned (adjustable) or the soft-close mechanism has lost tension (runner replacement required). Debris in the runner track can also prevent full closure - clean the track first before attempting adjustment or replacement.
The fixing screw has worked loose over time, which is normal in high-use areas. Tighten the fixing screw from inside the cabinet door. If the screw thread has stripped, use a slightly larger diameter screw or a thread repair insert to avoid drilling a new hole in the door.
Hardware Quick Reference - What to Specify
| Hardware Type | Minimum Spec | Recommended Spec | Brand | When to Upgrade |
|---|---|---|---|---|
| Cabinet door hinge | Concealed cup hinge, 110 degrees | Soft-close BLUMOTION, 110 degrees | Blum / Hafele | All kitchens - always |
| Corner cabinet hinge | Wide-angle hinge, 165 degrees | Wide-angle with soft-close | Blum / Hafele | Any corner cabinet position |
| Drawer runner | Full-extension concealed runner | MOVENTO with BLUMOTION soft-close | Blum | All base drawers - always full extension |
| Drawer box system | Standard steel box | TANDEMBOX ANTARO with BLUMOTION | Blum | Heavy-use kitchens, premium finish |
| Upper cabinet lift | Standard hinge (swing out) | AVENTOS HK or HL lift system | Blum | Above hob or primary prep counter |
| Handle material | Stainless steel brushed | PVD-coated brass / matte black | Hafele / local brands | Dry kitchen / aesthetic preference |
| Handleless system | J-profile groove | Blum TIP-ON BLUMOTION | Blum | Contemporary handleless design |
Not Sure What Hardware Your Quote Includes?
Bring your contractor's quote to our showroom and we will walk through it with you - confirming what is specified, what is missing, and what is worth upgrading before you sign.
Chat With Our TeamFrequently Asked Questions
What kitchen cabinet hardware brand is best in Malaysia?
Blum and Hafele are the two most trusted hardware brands for kitchen cabinets in Malaysia. Blum is the gold standard for hinges and drawer runners - their CLIP top BLUMOTION hinge and TANDEMBOX drawer system are specified by most premium Malaysian kitchen cabinet makers. Hafele offers a broader product range at competitive price points. Both brands have authorised distributors in Malaysia and offer 10-year warranties. Generic no-brand hardware typically fails within 3 to 5 years under Malaysian cooking conditions.
What is a soft-close hinge and is it worth the extra cost?
A soft-close hinge contains a hydraulic damper that slows the door in the last 15 to 20 degrees of closing, preventing slamming. In Malaysian kitchens where cabinet doors are opened and closed dozens of times daily, the reduced wear on hinges, doors, and the carcass extends cabinet lifespan significantly. Soft-close hinges cost approximately RM5 to RM10 more per hinge than standard equivalents - for a full kitchen with 30 to 40 hinges, the total premium is RM150 to RM400, making it among the best-value hardware upgrades available.
What is the difference between partial-extension and full-extension drawer runners?
Partial-extension runners allow a drawer to open to approximately 75% of its depth, leaving the back quarter inaccessible. Full-extension runners allow the drawer to open completely, bringing every item in the drawer to the front. In a Malaysian kitchen where base cabinets store pots, spices, and cooking tools, full-extension runners are significantly more practical. Full-extension runners cost approximately 20 to 40% more than partial-extension runners of comparable quality.
How many hinges does a kitchen cabinet door need in Malaysia?
Doors up to 800mm tall use 2 hinges. Doors from 800mm to 1,200mm use 3 hinges. Doors above 1,200mm use 4 or more hinges. Heavier door materials require additional hinges regardless of height. Corner cabinet positions require wide-angle hinges at 165 to 170 degrees, not standard 110-degree hinges. Using the minimum hinge count for a heavy door stresses each hinge and accelerates wear.
What is a push-to-open or tip-on system for kitchen cabinets?
A push-to-open or tip-on system allows a cabinet door or drawer to open with a gentle press rather than a pull handle - a handleless design with no visible hardware. Blum's TIP-ON BLUMOTION combines push-to-open with soft-close. These systems require precise installation to function reliably and are more expensive than conventional handle-based systems. They are popular in contemporary minimalist Malaysian kitchen designs.
How do I know if my kitchen cabinet hardware is failing?
Early signs include: doors that no longer hang level or close flush; drawers that require lifting to push closed or wobble from side to side; hinges that creak or feel stiff; soft-close mechanisms that no longer slow the door; and handles that have become loose at the screw fixing. Most hinge issues can be corrected by adjustment using the three-way adjustment screws on Blum and Hafele concealed hinges before full replacement becomes necessary.
